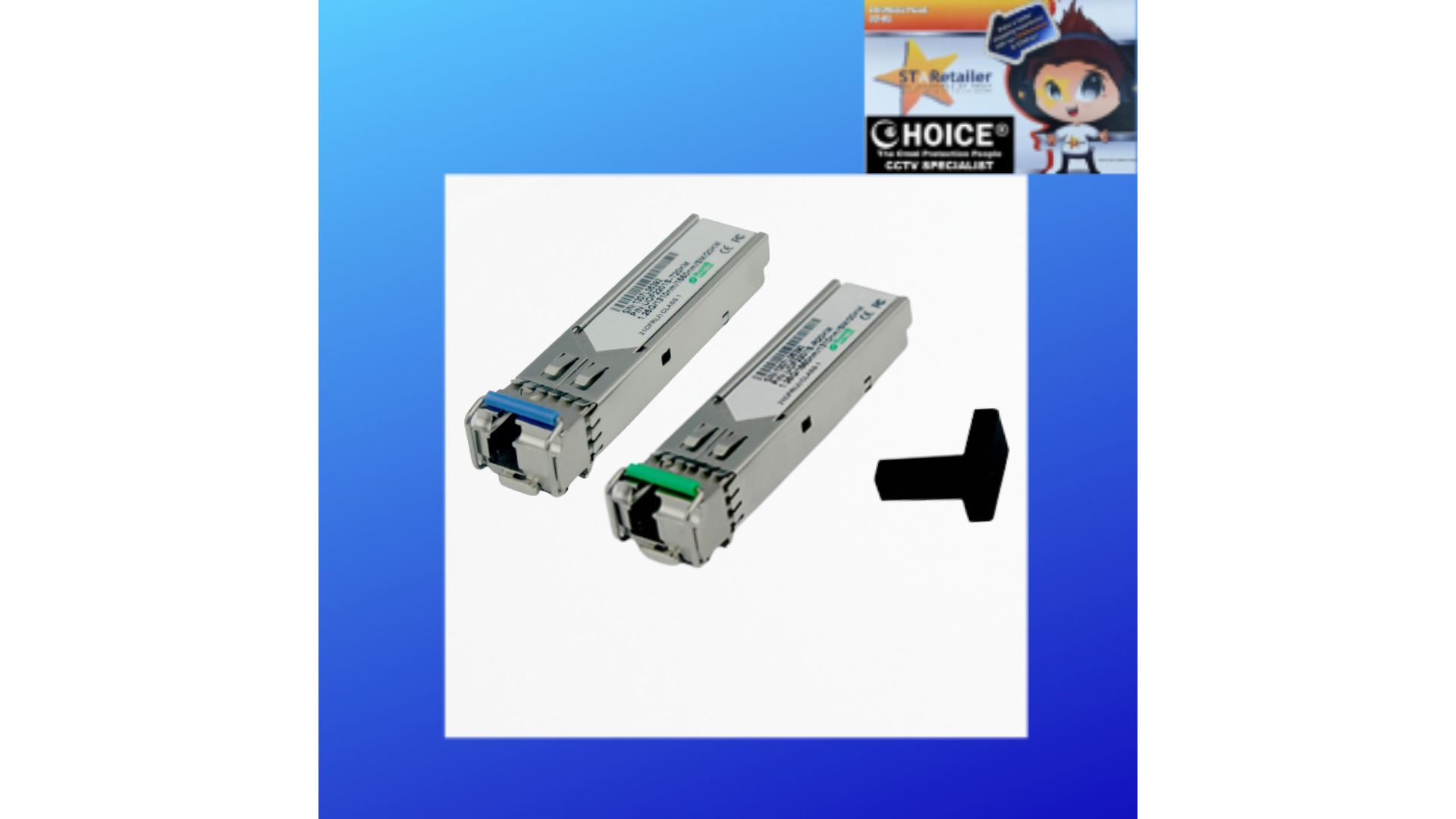

SFP Optical Module 1.25G Single Optical Fiber 20km SFP-1.25G-20KM-TX/RX

This is a standard SFP optical module. It uses a single mode optical fiber and the speed rate can up to 1.25Gbps, transmission distance up to 20 km. This product need to use in pair and match up with fiber converter and optical Ethernet switch with SFP port, it can be used in Ethernet, telecom and optical fiber communication and other industries.

• Use SFP packaging form, LC connector, support SFF8472 standard

• Support hot plug

• Transmitter use1310nm FP laser and 1550PIN-TIA. Receiver use 1550nm FP laser and1310nm PIN-TIA

• The data transmission distance of single mode optical fiber can up to 20 km

• Data input and output ports are comply with the low voltage emitter coupled logic(LVPECL) standard

• Low electromagnetic interference to the environment, strong ESD protection

• Meet IEC-60825 laser safety standard

• Meet RoHS standard


Item

Description

Power

Power Supply

The Host Power Supply

Voltage Range

DC3.15V3.45V

Consumption

1W

Optical Characteristics

Optical Wave Length

1310nm/1550nmand1550nm/1310nm

Emission Light Power

-8-3 dBm

Receiver Sensitivity

-24 dBm

Transmission Characteristics

Optical Fiber Type

Single mode 9/125um

Optical Fiber Port

LC

Transmission Distance

Single mode 20km

Protection

ESD

1a contact discharge 3 level

1b air discharge 3 level

Per:IEC61000-4-2

Environmental

Working Temperature

0℃~70℃

Storage Temperature

-40℃~70℃

Humidity (Non-condensing)

0~95%

Mechanical

Dimension (L×W×H)

55.4mm×13.7mm×6.25mm

Material

Stainless steel

Color

White

Weight

17g

1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.

2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
4. Can issue e-Invoice for your accounting. (upon request)

SFP Optical Module 1.25G Single Optical Fiber 20km SFP-1.25G-20KM-TX/RX


Technical Details:

Seller SKU: CC81RTSFP-1.25G-20KM-TX/RX
Origin: Singapore
Minimum order quantity: 1
Date first listed on Sim Lim Square: Apr 19, 2022

SFP Optical Module 1.25G Single Optical Fiber 20km SFP-1.25G-20KM-TX/RX

This is a standard SFP optical module. It uses a single mode optical fiber and the speed rate can up to 1.25Gbps, transmission distance up to 20 km. This product need to use in pair and match up with fiber converter and optical Ethernet switch with SFP port, it can be used in Ethernet, telecom and optical fiber communication and other industries.

• Use SFP packaging form, LC connector, support SFF8472 standard

• Support hot plug

• Transmitter use1310nm FP laser and 1550PIN-TIA. Receiver use 1550nm FP laser and1310nm PIN-TIA

• The data transmission distance of single mode optical fiber can up to 20 km

• Data input and output ports are comply with the low voltage emitter coupled logic(LVPECL) standard

• Low electromagnetic interference to the environment, strong ESD protection

• Meet IEC-60825 laser safety standard

• Meet RoHS standard
