1000BASE-T to 1000BASE-LX Signal Conversion
– Up to 15 km Single-Mode Fiber Cable Distance
– Single Fiber Strand for Transmission/Reception
– Full Duplex operation
– 802.3x Flow Control Support
– Installable as Stand-Alone Device or in Rack-Mount Chassis
Product Description

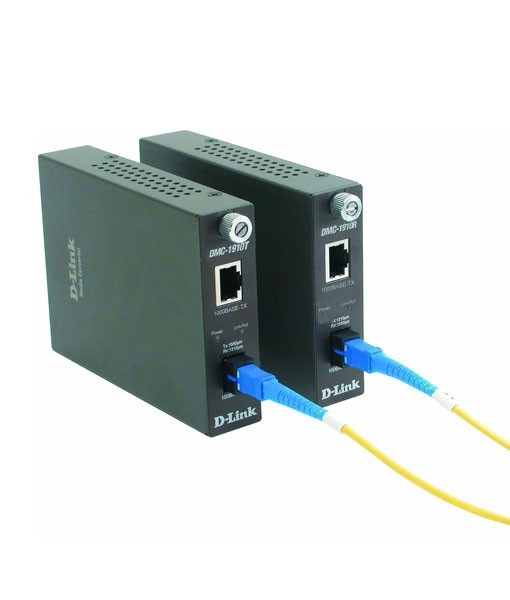

The D-Link DMC-1910T/E Fiber Media Converter converts 1000BASE-T copper Gigabit signals to 1000BASE-LX fiber Gigabit signals. This allows you to connect longer distance fiber cables between two devices that are designed only for shorter distance Cat. 5 twisted-pair cable.
The DMC-1910T/E media converter combines transmitting and receiving signals onto one fiber strand using two wavelengths. This design avoids the budget losses incurred by the single-wavelength single-fiber technology, and minimizes any possibility of reflections in the system. The DMC-1910 consists of two units. One unit uses one wavelength to transmit and a second wavelength to receive, while the other flips that relationship. Two different types of transmitting wavelength are supported: one bi-directional wavelength for both transmission and reception.

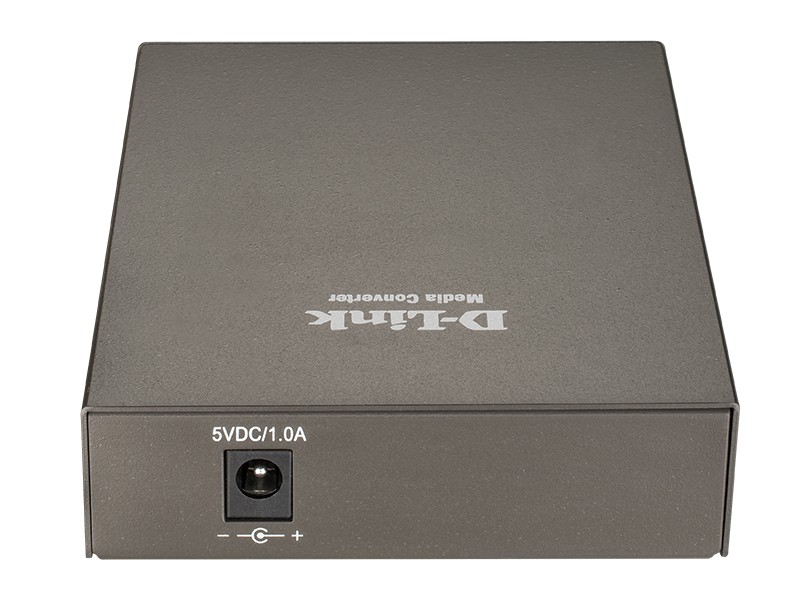

Both units of the DMC-1910T/E media converter are encased in a solid metal housing with LED status indicators. The DMC-1910T/E can be used as stand-alone converter, or installed in a DMC-1000 chassis. In case you install it in the chassis, you will remove the metal cases of the two units and slide in their PC boards into the chassis slots. The chassis’s power supply will be used instead of the media converters’ own AC to DC power adapter. The media converter is hot swappable when used with the chassis.
Technical Details:
| Brand: | D-LINK |
|---|---|
| Seller SKU: | DMC-1910T/E |
| Origin: | Singapore |
| Minimum order quantity: | 1 |
| Date first listed on Sim Lim Square: | Feb 23, 2022 |
1000BASE-T to 1000BASE-LX Signal Conversion
– Up to 15 km Single-Mode Fiber Cable Distance
– Single Fiber Strand for Transmission/Reception
– Full Duplex operation
– 802.3x Flow Control Support
– Installable as Stand-Alone Device or in Rack-Mount Chassis
Product Description
The D-Link DMC-1910T/E Fiber Media Converter converts 1000BASE-T copper Gigabit signals to 1000BASE-LX fiber Gigabit signals. This allows you to connect longer distance fiber cables between two devices that are designed only for shorter distance Cat. 5 twisted-pair cable.
The DMC-1910T/E media converter combines transmitting and receiving signals onto one fiber strand using two wavelengths. This design avoids the budget losses incurred by the single-wavelength single-fiber technology, and minimizes any possibility of reflections in the system. The DMC-1910 consists of two units. One unit uses one wavelength to transmit and a second wavelength to receive, while the other flips that relationship. Two different types of transmitting wavelength are supported: one bi-directional wavelength for both transmission and reception.
Both units of the DMC-1910T/E media converter are encased in a solid metal housing with LED status indicators. The DMC-1910T/E can be used as stand-alone converter, or installed in a DMC-1000 chassis. In case you install it in the chassis, you will remove the metal cases of the two units and slide in their PC boards into the chassis slots. The chassis’s power supply will be used instead of the media converters’ own AC to DC power adapter. The media converter is hot swappable when used with the chassis.
