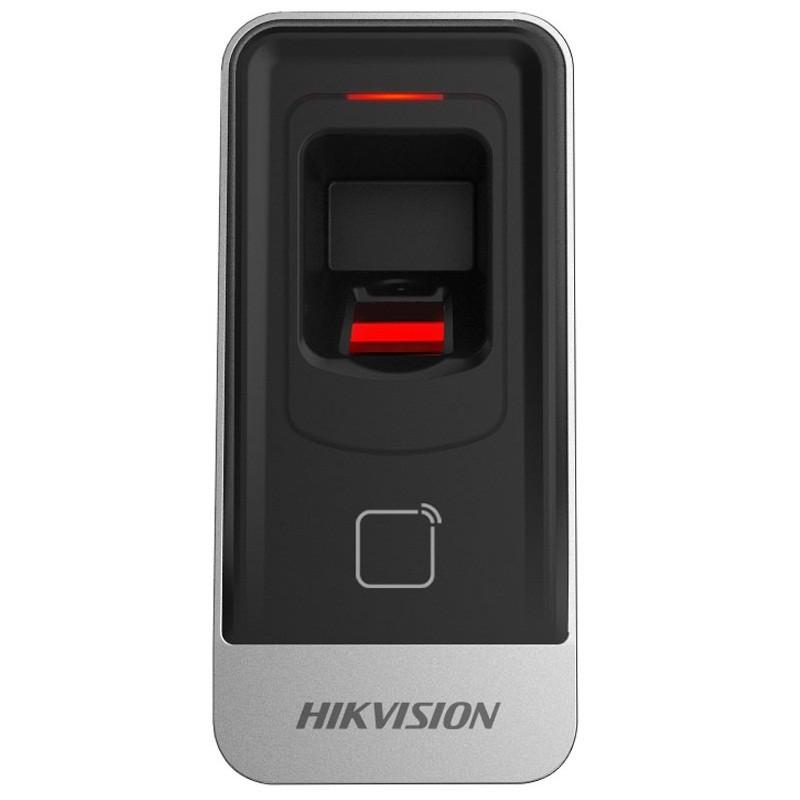

Fingerprint and Card Reader DS-K1201MF

Fingerprint reader (Need work with controller)

• A group of messy code encrypted data for the security of fingerprint storage
• Supports RS485 communication with 19200bps-N-8-1 transmission rate. There are CRC test for the protocol.
• Supports EM card reading (DS-K1201EF)
• Supports Mifare card reading (DS-K1201MF)
• Card induction distance is 30mm to 100mm
• Supports multiple authentication modes (card, fingerprint, and card + fingerprint)
• Optical CMOS fingerprint module. The characters of fingerprint can be export to the card reader
• Max. 5000 fingerprints storage
• Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)
• Fingerprint comparison time: 1:1≤1s, 1:1000≤1s; FRR≤0.01%, FAR≤0.001%
• Communication circuit is designed with optical coupling isolation and noise suppression function
• Build-in buzzer for status indication
• Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
• Tamper-proof function.


1. Collection from SGCCTV   Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.

2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
4. Can issue e-Invoice for your accounting. (upon request)

Fingerprint and Card Reader DS-K1201MF

Technical Details:
