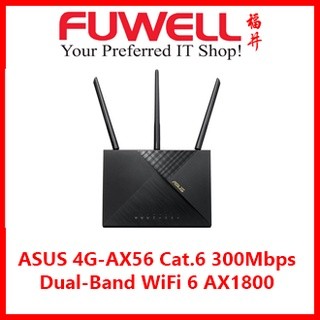

Model Name

4G-AX56

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

IPv4

IPv6

Product Segment

AX1800 ultimate AX performance

Data Rate

802.11a : up to 54 Mbps

802.11b : up to 11 Mbps

802.11g : up to 54 Mbps

WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps

WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps

Connectivity Technology

LTE: Downlink 300 Mbps / Uplink 50 Mbps

HSPA+: Downlink 42 Mbps / Uplink 11 Mbps

4G FDD-LTE: 2100 /1800 /850 /2600 /900 /800 /700

4G TDD-LTE: 2300 /2600 /2500

3G UMTS: 2100 /1800 /850 /900

Antenna

WiFi: 2 x external fixed antenna

LTE: 1 x external fixed antenna, 1 x internal antenna

Memory

128 MB Flash

512 MB RAM

Operating Frequency

2.4 GHz / 5 GHz

Ports

1 x Gigabit WAN port, 4 x Gigabit LAN ports, 1 x Nano SIM tray slot

Button

Power, Reset, WPS

LED Indicator

Power x 1

WiFi x 2

WAN x 1

Mobile WAN connection x 1

Mobile WAN signal x 3

Package content

4G-AX56

Quick Start Guide

Warranty Card

RJ45 Cable

Power Adapter

Product Weight (g)

753

Router APP

ASUS Router APP

Alexa

Support Alexa skill

AiProtection

AiProtection Classic

Router Security Assessment

Malicious site blocking

Parental Control

Parental Control

Parental Control Customized Internet schedule

Traffic Control

Bandwidth limiter

Traditional QoS

Real-time traffic monitor

Wired Traffic Monitor : Wired Traffic Monitor

Website history

Wireless

IPv6

MU-MIMO

UTF-8 SSID

Guest Network

Guest Network Connection time limit

WPS

Wi-Fi MAC address filter

Wireless scheduler

Airtime fairness

Universal beamforming

Explicit beamforming

WAN

Internet connection Type : Mobile WAN, Ethernet WAN

Dual WAN : Yes

Port forwarding : Yes

DMZ : Yes

DDNS : Yes

NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay

Let's Encrypt : Yes

LAN

DHCP Server : Yes

IGMP snooping : Yes

IPTV : Yes

Manually assign IP address : Yes

Maximum manually assign IP address rule : 64

VPN

VPN Client L2PT : Yes

VPN Client OVPN : Yes

VPN Client PPTP : Yes

VPN Server OVPN : Yes

VPN Server PPTP : Yes

Administration

Operating mode : Modem Router,Access Point

Operating system : Yes

Firewall : Yes

Maximum Firewall keyword filter : 64

Maximum Firewall network service filter : 32

Maximum Firewall URL filter : 64

Wake on LAN (WOL) : Yes

Configuration backup and restore : Yes

SSH : Yes

Diagnosis tools : Yes

Feedback system : Yes

System log : Yes

Technical Details:
